ISO9001 Ductile Iron Resilient PN16 FLANGE Gate Valve from tianjin factory

FOB Reference Price:Get Latest Price
US $2-500 / Sets | 5 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Power:
Manual
Material:
Stainless Steel
Temperature of Media:
Medium Temperature
Media:
Water
Port Size:
40-1000mm
Place of Origin:
Tianjin, China (Mainland)
Model Number:
gate valve
Brand Name:
HUAYANG
Application:
General
Product name:
flange gate valve
Connection:
Flange Ends
Color:
customer's require
Certificate:
CE ISO9001
Standard:
standard
Body material:
WCB
Type:
gate valve
port:
full port
Medium:
Water Oil Gas
design spec:
GB/T12234
Supply Ability
Supply Ability:
5000 Set/Sets per Week
Packaging & Delivery
Packaging Details
wooden packing or depends on customer's require
Port
tianjin port china
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 5 To be negotiated
Product Description





.jpg


Chief Features

Full port,outside screw and Yoke(OS&Y)

Bolt bonnet

Flexible wedge,fully guided

Structure according to API

Rising stem and non-rising handwheel

Available with gear operator

Flanged ends



Product specification

Design spec

Face to face

Flanged end

Test & check

Pressure-temp

Marking

supply

GB/T 12234

GB/T 12221

JB/T79  GB9113

JB/T9092  GB/T13927

GB/T 9131

GB/T 12220

JB/T7928





Main part material

Part name

Body material code

Body

WCB

ZGCr5Mo

ZG1Cr18Ni9Ti/CF8

ZG1Cr18Ni12Mo2Ti/CF8M

Disc

WCB

ZGCr5Mo

ZG1Cr18Ni9Ti/CF8

ZG1Cr18Ni12Mo2Ti/CF8M

Stem

1Cr13

25Cr2MoV

1Cr18Ni9Ti

1Cr18Ni12Mo2Ti

Packing

Flexible Graphite

PTFE

Gasket

18-8Flexible Graphite

Bolt

35/35CrMo

25CrMoV

1Cr18Ni9

1Cr18Ni9

Suitable temp

-29℃-425

-29℃-550

-40℃-200

-40℃-200

Suitable medium

Water,oil, steam

Steam,oil

Nitrice acid

Acetic acid



Certifications

Certification

Packaging & Shipping

packing & shipping-HY valve

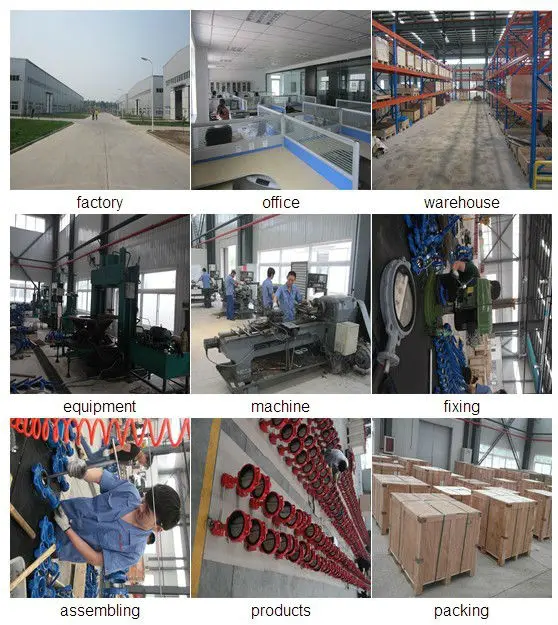

Company Information




Tianjin Huayang Valve Co.,Ltd established in 1956,is a share-holding company which originated from the system reform of Tianjin Tanggu Valve Plant.It's the manufuturer firstly imported the technology of centerline butterfly valve.Huayang is a modern valve company providing R&D,manufacture,sales and service.



WHY CHOOSE US?

Price



We have own factory for more than 20 years production experence.we can provide the better price than other trading company.



Production capacity



Our factory could export 3000 tons/year.



OEM Service



We have professional technical research team,they have 20 years experence.If you have special requirements about the production,they could help you solve the problem.



Good sales service



Products in stock,it will take 15 days for delivery.Standard delivery time about 30-45 days.



High work effective



We will always try our best to reply you within 12 hours.
