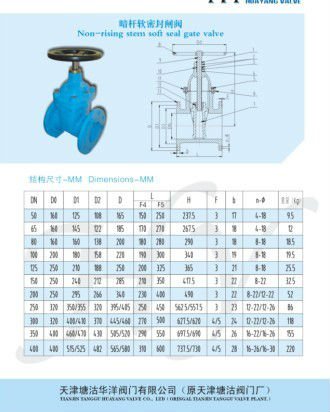

Non-Rising Stem Soft Seal Gate Valve

FOB Reference Price:Get Latest Price
US $10-1,000 / Pieces | 10 Piece/Pieces 100 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Medium Pressure
Power:
Manual
Material:
Casting
Temperature of Media:
Low Temperature
Media:
Water
Port Size:
DN50-400
Place of Origin:
Tianjin, China (Mainland)
Model Number:
Z45X-10/16
Brand Name:
TVT
Certification:
ISO9001
body:
cast iron/ductile iron/carbon steel
disc:
ductile iron/stainless/carbon steel
seat:
EPDM/PTFE/Stainless Steel
Supply Ability
Supply Ability:
10000 Piece/Pieces per Year 5,000pcs/month
Packaging & Delivery
Packaging Details
each one in bubble bag,outer packing in wooden cases
Port
Tianjin port

Non-Rising Stem Soft Seal Gate Valve

♥  Our new factory

  1. Industrial area covered:40,000 square meters
  2. The time of trial operation: in June , 2012
  3. Invested in 50 million yuan
  4. It is 20 kilometers far from downtown, 70 kilometers far from Beijing


♥   About Company

Tianjin Tanggu Huayang Valve Co.,ltd is a  share-holding company that originated from the system reforming of Tianjin Tanggu Valve Plant.Tianjin Tanggu valve plant was established in 1956,specialized in butterfly valve,gate valve,ball valve,check valve,Y-strainers.



Relying on superior quality and excellent service, our valve parts are selling well in the European, South African, Middle East, and Southeast Asian markets. Presently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits.

♥  Detailed Product Description

Technical data

  1. nominal pressure:1.0MPA/1.6MPA
  2. shell test pressure:1.5MPA/2.4MPA
  3. seal test pressure:1.1MPA/1.76MPA
  4. working temperature:EPDM:-10°C-120°C
  5.                                          NBR:-10°C-82°C
  6. Applicable medium:water,oil,gas



Standard

  1. Design standard confirms to DIN3352
  2. Face to face dimensions conforms to DIN3202 F4;F5 series
  3. Flange drilling according to DIN2532.DIN2533










 QCZ673W-10P DN250.JPGQYZ943H-10P.JPG~$CH~GRNZ0HGW$B1A}MTH3G.JPG

 F4 .JPG
