Rubber-Coated Dual Disc Wafer Check Valve

FOB Reference Price:Get Latest Price
US $10-1,000 / Pieces | 1 Piece/Pieces 1 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Medium Pressure
Power:
medium
Material:
cast iron,carbon steel,stainless steel
Temperature of Media:
Normal Temperature
Media:
acids, bases, salts and so on.
Port Size:
DN50-DN600
Place of Origin:
Tianjin, China (Mainland)
Model Number:
H77X-10/16
Brand Name:
TVT
painting:
epoxy painting
Supply Ability
Supply Ability:
100000000 Piece/Pieces per Year 50000/month
Packaging & Delivery
Packaging Details
plywood case
Port
Xingang,Tianjin
Lead Time :
25 days

Specifications

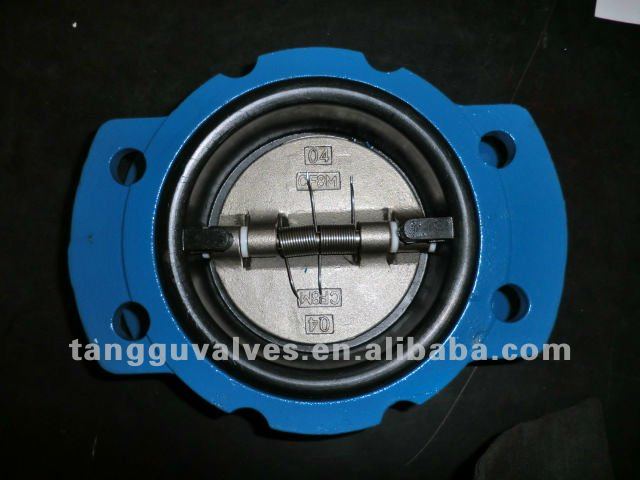

Rubber-coated Check Valve
1. Professional manufurer above 10 years.
2.CE and ISO9001 certificate
3.H77X-10/16

Rubber-coated Check Valve



♥   About Factory

Tianjin Tanggu Huayang Valve Co.,ltd is a  share-holding company that originated from the system reforming of Tianjin Tanggu Valve Plant.Tianjin Tanggu valve plant was established in 1956,specialized in butterfly valve,gate valve,ball valve,check valve,Y-strainers.

Relying on superior quality and excellent service, our valve parts are selling well in the European, South African, Middle East, and Southeast Asian markets.

Our NEW FACTORY is establishing!

new factory.jpg

Our new factory is expected to put into production in June, 2012. It covers an area of 40000 squares. Accumulative investment has reached 50 million So far. The Research and Development Center will be established and be specialized in researching new technology and new material about valves. The Valve Testing Center with international first-class level will be finished establishing and put into use in 2012.



♥  Detailed Product Description

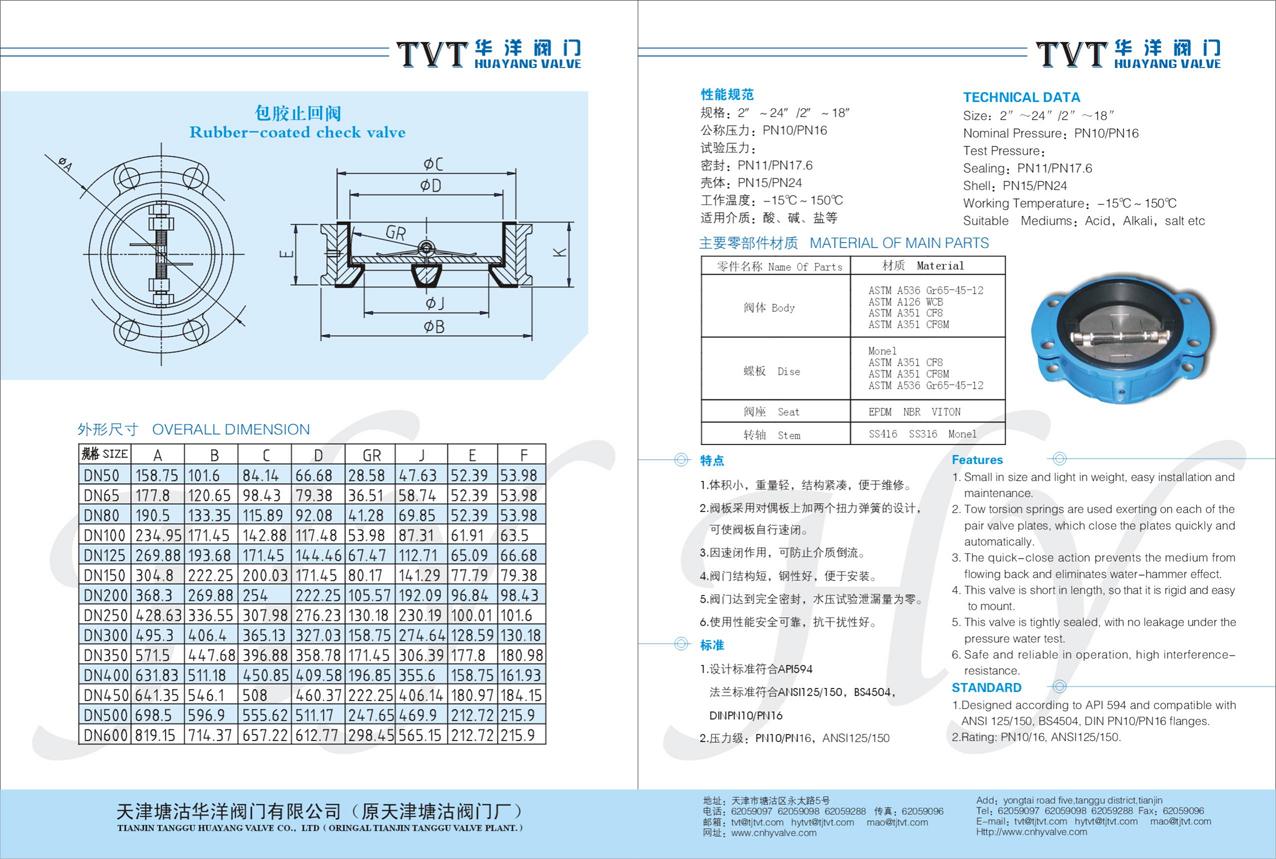

Technical  Data

1.   size:1.5"-28"

2.   nominal pressure:PN10/PN16

3.   test pressure:sealing:PN10/PN17.6  ;shell:PN15/PN24

4.   working temperature:-15-150

5.   applicable medium:water,steam,oil

Standard

1.   design standard:API594

2.   face to face:ISO5752 DIN3202

3.   body flange drilling:DIN2501 PN10/PN16,BS4504

4.   test standard:API598



Features

  • Small in size and light in weight, easy to install and maintain.
  • Two torsion springs are installed on each of the dual discs, which close the plates quickly and automatically.
  • The quick-close action preventing reverse flow of working media.
  • Short in length, so that it is rigid and easy to mount.
  • Tightly sealed, with no leakage under the pressure test.
  • Safe and reliable in operation, high interference-resistance.

RUBBER COATED CHECK VALVE.jpg
