Double eccentric resilient flanged butterfly valve

FOB Reference Price:Get Latest Price
US $10-3,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
TVT
Model Number:
HBV-14021103
Material:
Casting
Temperature of Media:
Medium Temperature
Pressure:
Medium Pressure
Power:
Pneumatic
Media:
Water
Port Size:
can according to customers
Structure:
Angle
Standard or Nonstandard:
Standard
OEM:
accepted
certificate:
ISO,CE,WRAS
part size:
DN40mm-1400mm
colour:
Epoxy coating
Place of Origin:
CN;TIA
Supply Ability
Supply Ability:
10000 Piece/Pieces per Quarter
Packaging & Delivery
Packaging Details
Bubble pack for each valve&Plywood cases. Or as per the request of customers.
Port
Tianjin

Factory show





Product overview:



The product has simple structure and reasonable design. Rotate handle 90°, can switch valve easily, and  keep valve disc stay at the needed angle .



Product features


   Axillare Adopting no-pin connection, compact structure, easy to transport, install and maintain.
  90° on/off, worm gear transmission, small operating torque for energy saving.
  Soft seal, zero leakage, long service life.
  Flow characteristic tend to straight line, prefect regulation performance.
  Various of material for parts, can adapted to multiple mediums.
  Surface coating with epoxy resin, well appearance and corrosion resistance.



Adoption Standard



Item
 Adoption standard Optional standard
Design Manufacture  Acceptance
 GB12238-1989 ISO/DIN10631-1991,API598
Valve structure lengh
 GB12221-1989  ISO5752-1988
Valve flange length
 GB9113-2000 ANSI B16.5,ISO7005,JIS B2238,2239
Inspection
 GB/T13927-1992    ISO/DIN5208-1987
Mark
 GB12220-1989  ISO05209-1987



Performance parameter:



 Product Name Wafer type Handle midline butterfly valve
 Connection Wafer type
 Nominal diamater DN40~DN150
 Nominal pressure PN10/PN16
 Test pressure

Shell test:PN×1.5

Seal test:PN×1.1

 Surface treatment Epoxy coating
 Driven type Steamlined Aluminum Handle or High Strengh malleable Iron Handle
 Applicable temperature -30°C~180°C
 Applicable mediums Water, Salt, Acid, Alkali, Nature gas, Air, Alcohols, oils, food, steam and so on.



Optional materials for parts



Name
Optional Materials
Body
Ductile Iron(DI), Gray Cast iron(CI), Cast Steel(WCB), Stainless steel(CF8/CF8M)
Disc
Ductile iron nylon coating(N),Plated ductile iron(D), CF8(P), CF8M(R),Aluminum bronze(T)
Seat
EPDM , NBR. PTFE, VITON, EP, EPDM ,EPDM
Shaft
416SS 316SS 304SS CS45#coating with Ni,P
ActuatorCast iron worm gear reducer, Cast aluminum worm gear reducer





Overall Dimensions:







Specs
inch
H
H1
H2
L
L1

ΦD

N-Φ

ΦD1

mm
in
DN40
1.5"
208
138
60
33
175
110
4-19
65
DN50
2"
210
140
60
42
175
125
4-19
65
DN65
2.5"
230
150
60
45
175
145
4-19
65
DN80
3"
255
160
60
45
175
160
8-19
65
DN100
4"
294
180
75
52
230
180
4-19
90
DN125
5"
316
190
75
55
230
210
4-19
90
DN150
6"
340
200
75
56
230
240
4-23
90

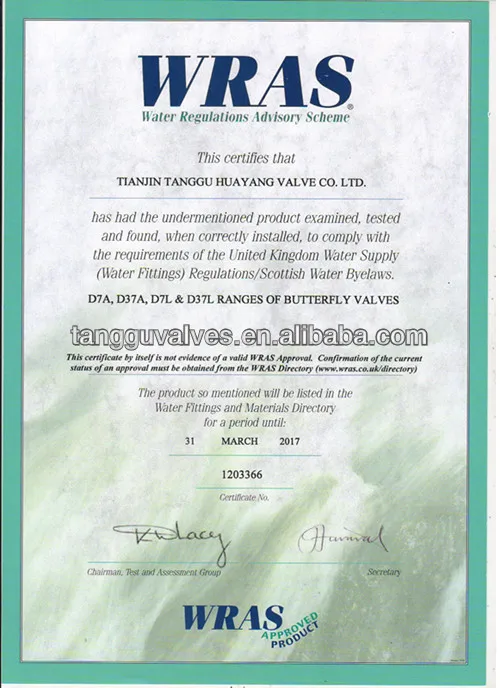

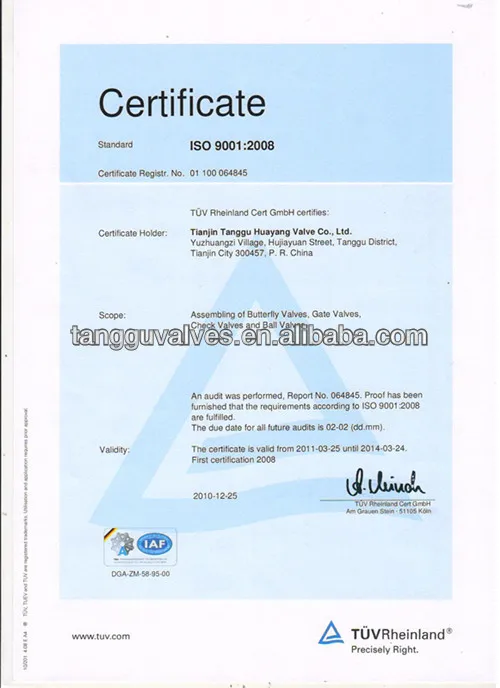

Certificate
